Single Acting Low-Height Hydraulic Cylinders FPY Series

Hydraulic Cylinders /

Single Acting Low-Height Hydraulic Cylinders FPY Series

Single Acting Low-Height Hydraulic Cylinders FPY Series Single Acting Low-Height Hydraulic Cylinder 10 Ton FPY-101 BARTON 1 fpy_101

Single Acting Low-Height Hydraulic Cylinder 10 Ton FPY-101 BARTON

Description

Catalog Manual Video

Single Acting Low-Height Hydraulic Cylinders FPY Series Single Acting Low-Height Hydraulic Cylinder 10 Ton FPY-101 BARTON

Specifications

Suitable for Vertical, Horizontal, Upside Down Positions

Model	FPY-101
Pump System	Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar	10 Ton
Body Height	47 mm
Travel / Stroke	11 mm
Total Height	58 mm
Oil Capacity	17 ml
Piston Diameter	35 mm
Outside Diameter	83x65 mm
Effective Area	15.9 cm²
Saddle	No
Dust Seal	No
Handle	No
Connection	Male 3/8" NPT x Male Coupler ZG
Mounting	Side Mounting Hole x2

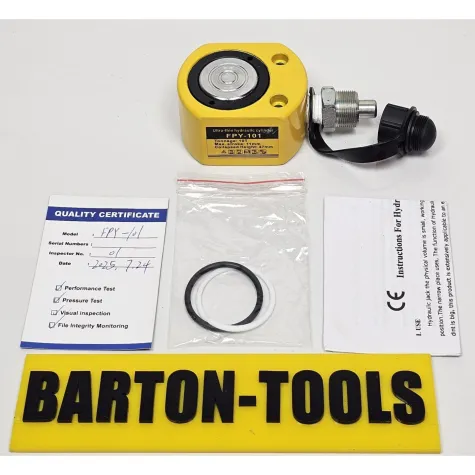

Package Includes	Wooden Box x1
	Cylinder FPY-101 x1
	Manual Instruction x1
	Quality Certificate x1
	Extra Seal Set x1
Unit Weight	1.6 kg
Packing Weight	3 kg
Packing Dimension	160x90x70 mm
