Single Acting Low-Height Hydraulic Cylinders FPY Series
Home /
Hydraulic Cylinders /
Single Acting Low-Height Hydraulic Cylinders FPY Series
Single Acting Low-Height Hydraulic Cylinder 20 Ton FPY-201 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Video
Tweet
Specifications
Model
FPY-201
Pump System
Single Acting 700 Bar Hydraulic Pump
Cylinder Capacity @700 Bar
20 Ton
Body Height
55 mm
Travel / Stroke
12 mm
Total Height
67 mm
Effective Area
33.1 cm²
Oil Capacity
40 ml
Outside Diameter
98x80 mm
Piston Diameter
49 mm
Handle
No
Connection

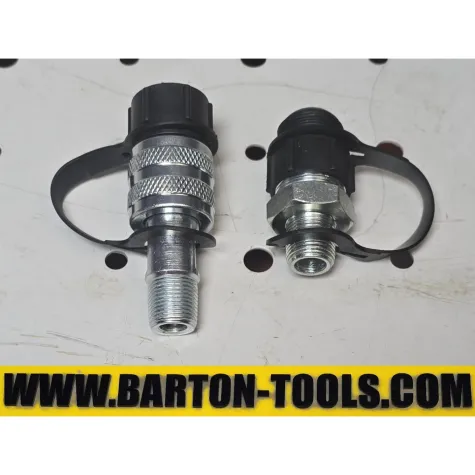

Male 3/8" NPT x Male Coupler ZG

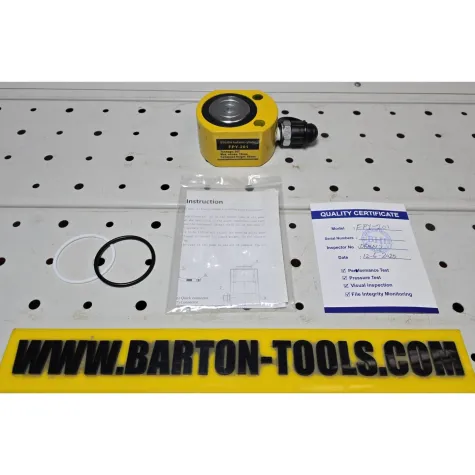

Include in Package
Manual Instruction
Quality Certification

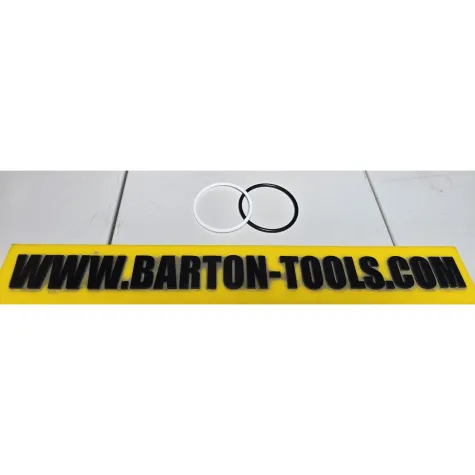

Extra Seal Set x1
Packing Weight
4 kg
Packing Dimension
180x110x85 mm
