Single Acting Low-Height Hydraulic Cylinders FPY Series

Hydraulic Cylinders /

Single Acting Low-Height Hydraulic Cylinders FPY Series

Single Acting Low-Height Hydraulic Cylinder 30 Ton 14mm Stroke FPY-301 BARTON

Description

Catalog Manual Video

Single Acting Low-Height Hydraulic Cylinders FPY Series Single Acting Low-Height Hydraulic Cylinder 30 Ton 14mm Stroke FPY-301 BARTON

Specifications

Suitable for Vertical, Horizontal, Upside Down Positions

Model	FPY-301
Pump System	Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar	30 Ton
Body Height	61 mm
Travel / Stroke	14 mm
Total Height	75 mm
Oil Capacity	62 ml
Piston Diameter	65 mm
Outside Diameter	123x100 mm
Effective Area	44.1 cm²
Saddle	No
Dust Seal	No
Handle	No
Connection	Male 3/8" NPT x Male Coupler ZG
Mounting	Side Mounting Hole x2
Package Includes	Wooden Box x1
	Cylinder FPY-301 x1
	Manual Instruction x1
	Quality Certificate x1

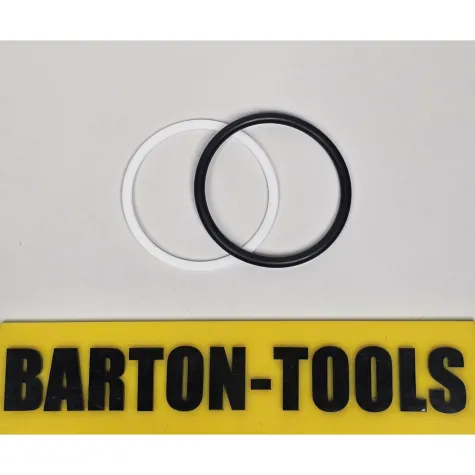

	Extra Seal Set x1
Unit Weight	5 kg
Packing Weight	6 kg
Packing Dimension	200x130x90 mm
