Single Acting Medium-Height Hydraulic Cylinders RSC Series
Home /
Hydraulic Cylinders /
Single Acting Medium-Height Hydraulic Cylinders RSC Series

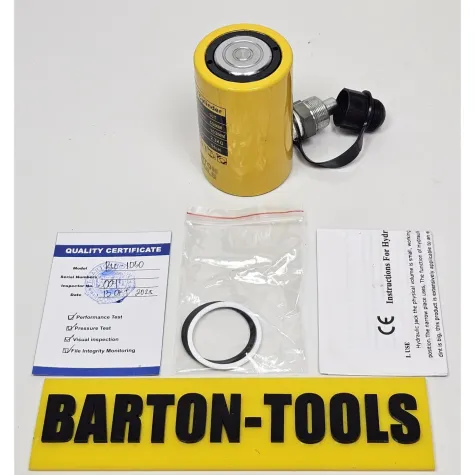

Single Acting Medium Height Hydraulic Cylinder 10 Ton 50mm Stroke RSC-1050 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Company URLs
Catalog
Manual
Video
Tweet
Specifications
Suitable for Vertical, Horizontal, Upside Down Positions
Model
RSC-1050
Pump System
Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar
10 Ton
Body Height
103 mm
Travel / Stroke
50 mm
Total Height
153 mm
Oil Capacity
79 ml
Piston Diameter
38 mm
Outside Diameter
64 mm
Effective Area
15.9 cm²
Saddle
No
Dust Seal
No
Handle
No
Connection
Male 3/8" NPT x Male Coupler ZG
Mounting
Base Mounting Hole
Package Includes
Wooden Box x1
Cylinder RSC-1050 x1
Manual Instruction x1
Quality Certificate x1
Extra Seal Set x1
Unit Weight
2.3 kg
Packing Weight
4 kg
Packing Dimension
140x130x90 mm
