Single Acting Medium-Height Hydraulic Cylinders RSC Series
Home /
Hydraulic Cylinders /
Single Acting Medium-Height Hydraulic Cylinders RSC Series

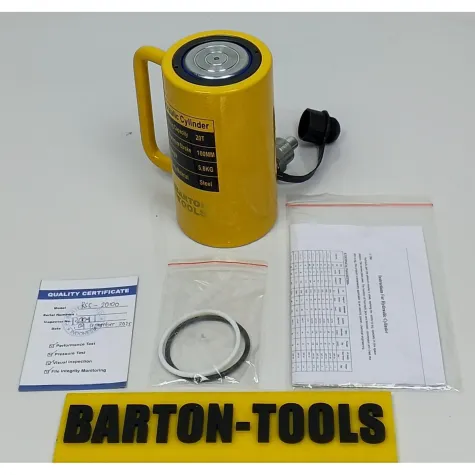

Single Acting Medium Height Hydraulic Cylinder 20 Ton 100mm Stroke RSC-20100 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Catalog
Manual
Video
Tweet
Specifications
Model
RSC-20100
Pump System
Single Acting 700 Bar Hydraulic Pump
Cylinder Capacity @700 Bar
20 Ton
Body Height
155 mm
Travel / Stroke
100 mm
Total Height
255 mm
Effective Area
28.3 cm²
Oil Capacity
283 ml
Outside Diameter
84 mm
Piston Diameter
50 mm
Handle
Yes
Connection
Male 3/8" NPT x Male Coupler ZG
Include in Package
Manual Instruction x1
Quality Certification x1
Extra Seal Set x1
Packing Weight
8 kg
Packing Dimension
190x170x140 mm
Related Product

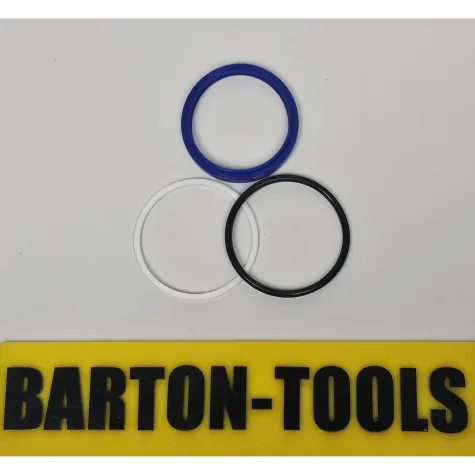

Seal Set for RSC-5050 BARTON
