Electric Hydraulic Pumps

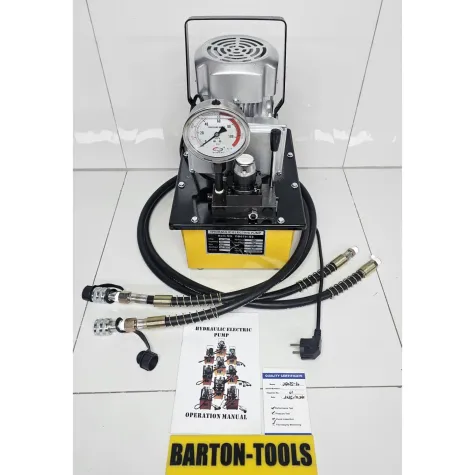

Double Acting Manual Valve Electric Hydraulic Pump 8L 0.75kw DB075-S2 BARTON

Description

Model	DB075-S2
Pump System	Double Acting Manual Valve
Power	750W 220V (1 Phase)
Working Pressure	700 Bar / 10000 psi / 70 MPa
Flow Rate	@100Bar: 5L/min
	@700Bar: 0.9L/min
Oil Capacity	8L (Usable 7L)
Recommended Oil Grade	ISO VG #15-46 Antiwear
Retain Pressure	Yes
Output Connection	Female Thread 3/8" NPT x2
Hose	2M 700 Bar 3/8" Hydraulic Hose
Hose Connection	Male Thread 3/8" NPT x Female Coupler ZG
Switch	No Switch, Manual Handle
Package Includes	Wooden Box x1
	DB075-S2 x1
	Hose x2
	Manual Instruction x1
	Quality Certificate x1
Packing Weight	31 kg
Packing Dimension	360x280x450 mm
