Electric Hydraulic Pumps

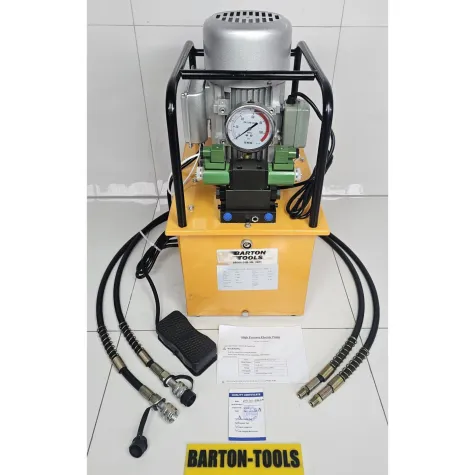

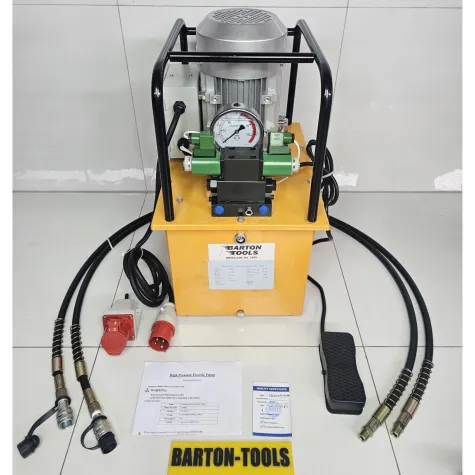

Double Acting Solenoid Valve Electric Hydraulic Pump 30L 3.0kw DB300-D2B BARTON

Description

Model	DB300-D2B-30L
Pump System	Double Acting, Solenoid Valve
Power	3000W - 220V (1 Phase) / 380V (3 Phase)
Working Pressure	100-700Bar / 1450-10000psi / 10-70Mpa
Flow Rate	@100Bar: 10L/min
	@700Bar: 4L/min
Oil Capacity	30L
Recommended Oil	Hydraulic Oil ISO VG #15-#46 Antiwear
Retain Pressure	Yes
Output Connection	Female 3/8" NPT x2
Switch	2 Way Foot Switch
Package Includes	Wooden Box x1
	DB300-D2B-30L Unit x1
	2M 700 Bar 3/8" Hydraulic Hose with Nipple 3/8" Male NPT x Female Coupler ZG x2
	Manual Instruction x1
	Quality Certificate x1
Packing Weight	66 kg
Packing Dimension	520x380x720 mm
