Ultra High Pressure Hydraulic Pumps

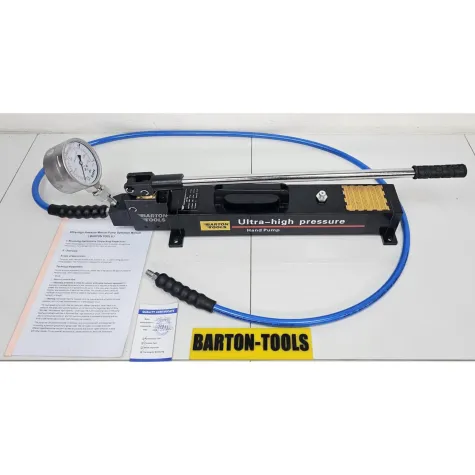

Ultra High Pressure Hydraulic Pump 1000bar UHP-1000 BARTON

Description

PERHATIAN:
Mohon Kendorkan Tutup Oli sewaktu Pemakaian untuk menghindari masuk angin yang menyebabkan Kebocoran

Model	UHP-1000
Pump System	Single Acting (One Way)
Working Pressure	1st stage: 20 bar
	2nd stage: 1000 bar
Oil Displacement per Stroke	1st Stage: 32ml
	2nd Stage: 1.6ml
Hose Connector	Male 1/4" BSP
Coupler Connector	Female 1/4" BSP
Pressure Gauge Connector	Female 1/2" BSP
Oil Capacity	3000 ml
Recommended Oil Grade	Hydraulic Oil ISO VG #15 Antiwear
Package Includes	Wooden Box x1
	UHP-1000 Pump x1
	2M 120MPa Hose x1

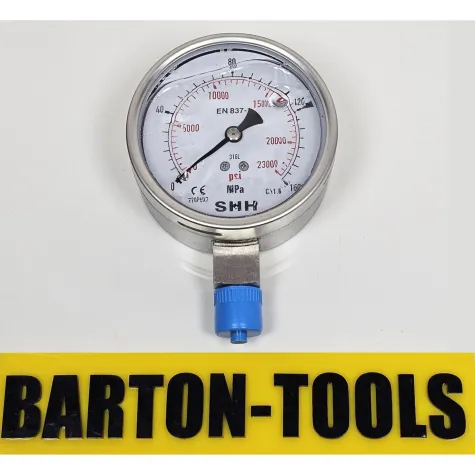

	160MPa Pressure Gauge x1

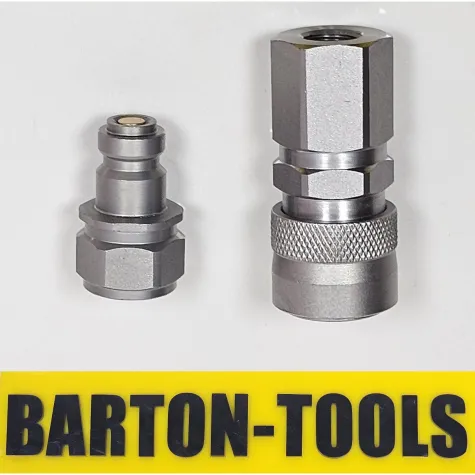

	3300 Bar Hydraulic Coupler x1 Set
	Manual Instruction x1
	Quality Certificate x1
Packing Weight	19 kg
Packing Dimension	730x230x300 mm
