Hose Crimping Tools

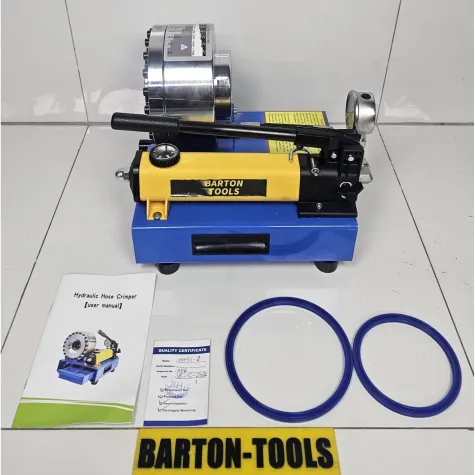

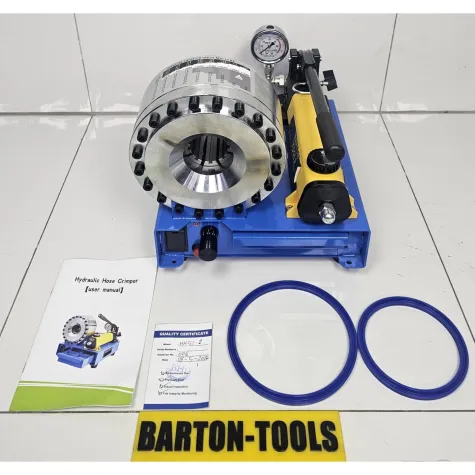

Hydraulic Hose Crimping 1/4"-1" ID (6-51mm) 2 Wires HH51-2 BARTON

Rp. 15.500.000

Description

Model	HH51-2
Pressure	350 Bar
Output	95 Ton
Crimping Range	1/4"-1" Hydraulic Hose with 2 Layers of Steel Wire
Outer Layer of Crimping Range	32 mm
Inner Layer of Crimping Range	25 mm
Mould Dies	10, 12, 14, 16, 19, 23, 27, 31 mm
Max. Opening Without Mould	55 mm
Max. Opening Mould	50 mm
Seizure of Outer Unit	40
Package Includes	Wooden Box x1
	HH51-2 Unit x1
	Mould (8 pcs) x1 set
	Manual Instruction x1
	Quality Certificate x1
	Extra Seal Set x1
Packing Weight	38 kg
Packing Dimension	440x350x370 mm
