Double Acting General-Purpose Hydraulic Cylinders

Hydraulic Cylinders /

Double Acting General-Purpose Hydraulic Cylinders

Double Acting General-Purpose Hydraulic Cylinders Double Acting Hydraulic Cylinder 10 Ton 200mm Stroke RR-10200 BARTON 1 rr_10200

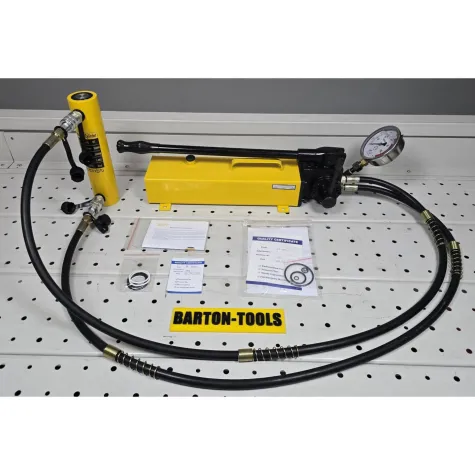

Double Acting General-Purpose Hydraulic Cylinders Double Acting Hydraulic Cylinder 10 Ton 200mm Stroke RR-10200 BARTON 2 rr_10200_cp_700s

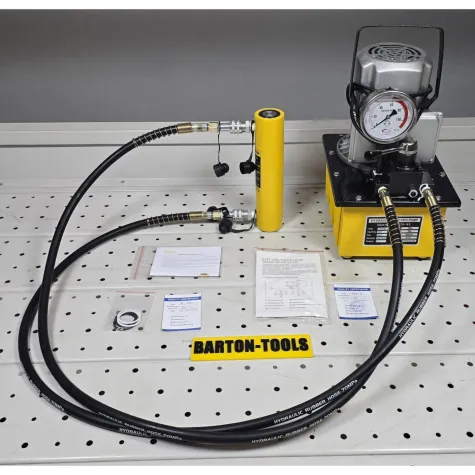

Double Acting General-Purpose Hydraulic Cylinders Double Acting Hydraulic Cylinder 10 Ton 200mm Stroke RR-10200 BARTON 3 rr_10200_db075_s2

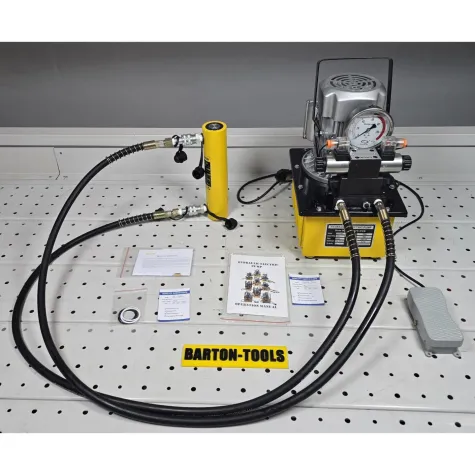

Double Acting General-Purpose Hydraulic Cylinders Double Acting Hydraulic Cylinder 10 Ton 200mm Stroke RR-10200 BARTON 4 rr_10200_db075_d2b

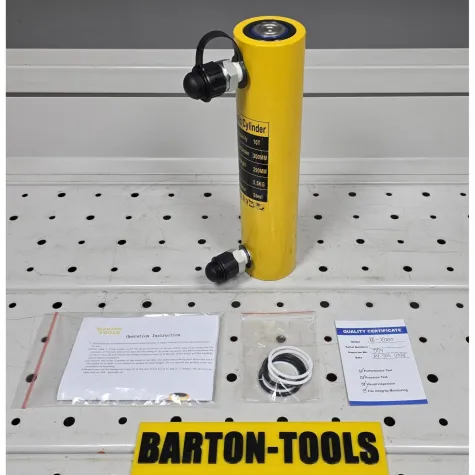

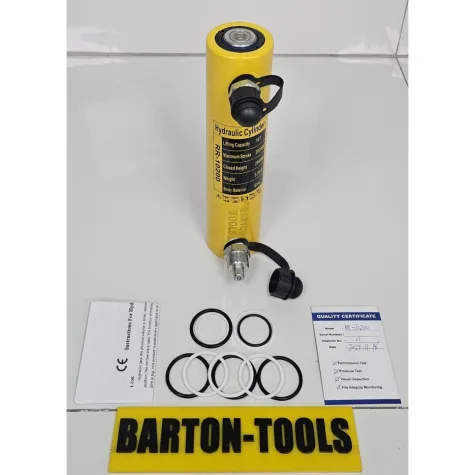

Double Acting Hydraulic Cylinder 10 Ton 200mm Stroke RR-10200 BARTON

Description

Double Acting General-Purpose Hydraulic Cylinders Double Acting Hydraulic Cylinder 10 Ton 200mm Stroke RR-10200 BARTON

Specifications

Model	RR-10200
Pump System	Double Acting
Cylinder Capacity @700 Bar	10 Ton
Body Height	290 mm
Travel / Stroke	200 mm
Total Height	490 mm
Oil Capacity	318 ml
Piston Diameter	45 mm
Outside Diameter	65 mm
Effective Area	15.9 cm²
Saddle	No
Unit Weight	5.5 kg
Packing Weight	8 kg
Packing Dimension	340x170x120 mm
