Double Acting General-Purpose Hydraulic Cylinders

Hydraulic Cylinders /

Double Acting General-Purpose Hydraulic Cylinders

Double Acting General-Purpose Hydraulic Cylinders Double Acting Hydraulic Cylinder 100 Ton 300mm Stroke RR-100300 BARTON 1 hhyg_100300s

Double Acting Hydraulic Cylinder 100 Ton 300mm Stroke RR-100300 BARTON

Description

Double Acting General-Purpose Hydraulic Cylinders Double Acting Hydraulic Cylinder 100 Ton 300mm Stroke RR-100300 BARTON

Specifications

With Saddle (Anti Slip) and Dust Seal (Increase Scratch Resistance)

Model	RR-100300
Pump System	Double Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar	100 Ton
Body Height	450 mm
Travel / Stroke	300 mm
Total Height	750 mm
Oil Capacity	Push 3978 ml + Pull 3978 ml
Piston Diameter	99 mm
Outside Diameter	180 mm
Effective Area	132.6 cm²
Saddle	Yes, Diameter 78 mm
Dust Seal	Yes
Handle	Eye Bolts
Package Includes	Wooden Box x1
	Cylinder RR-100300 x1
	Manual Instruction x1
	Quality Certificate x1

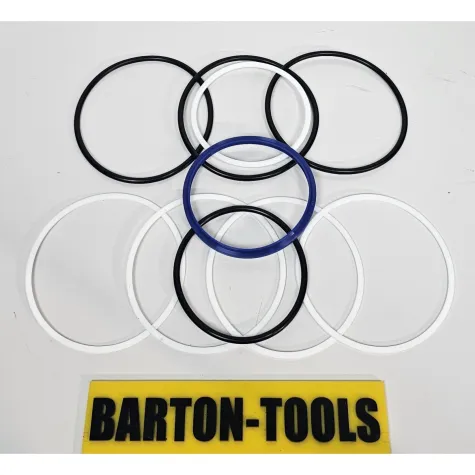

	Extra Seal Set x1
Unit Weight	78 kg
Packing Weight	83 kg
Packing Dimension	270x240x570 mm
