Double Acting General-Purpose Hydraulic Cylinders
Home /
Hydraulic Cylinders /
Double Acting General-Purpose Hydraulic Cylinders
Double Acting Hydraulic Cylinder 50 Ton 200mm Stroke RR-50200 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalog
Video
Tweet
Specifications
With Saddle (Anti Slip) and Dust Seal (Increase Scratch Resistance)
Model
RR-50200
Pump System
Double Acting 700 Bar
Cylinder Capacity @700 Bar
50 Ton
Body Height
315 mm
Travel / Stroke
200 mm
Total Height
515 mm
Oil Capacity
Push 1272 ml + Pull 1272 ml
Piston Diameter
75 mm
Outside Diameter
130 mm
Effective Area
63.6 cm²
Saddle
Yes, Diameter 55 mm
Dust Seal
Yes
Handle
Eye Bolts
Include in Package
Cylinder RR-50200 x1
Manual Instruction x1
Quality Certificate x1

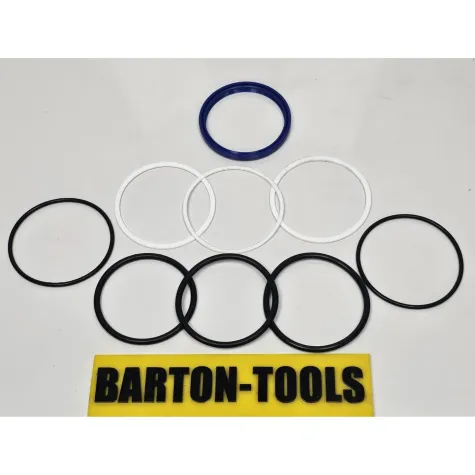

Extra Seal Set x1
Unit Weight
28.5 kg
Packing Weight
31 kg
Packing Dimension
200x200x340 mm
