Single Acting Aluminum Hydraulic Cylinders

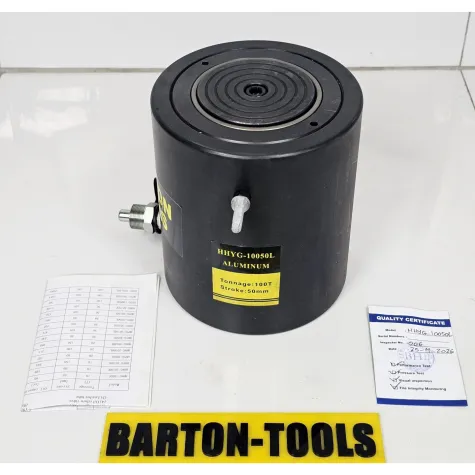

Single Acting Aluminium Hydraulic Cylinder 100 Ton 50mm Stroke HHYG-10050L BARTON

Description

Light Weight, Anti Explosion, Resist Wear & Corrosion
Suitable for Vertical, Horizontal, Upside Down Positions

Model	HHYG-10050L
Features	Aluminium Body (Heat Resistant), Light Weight, Anti Explosion, Resist Wear & Corrosion
Pump System	Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar	100 Ton
Body Height	208 mm
Travel / Stroke	50 mm
Total Height	258 mm
Oil Capacity	783 ml
Piston Diameter	110 mm
Outside Diameter	180 mm
Effective Area	143.1 cm²
Saddle	Yes
Dust Seal	No
Handle	Eye Bolts
Connection	Male 3/8" NPT x Male Coupler ZG
Mounting	Base Mounting Hole
Package Includes	Wooden Box x1
	Cylinder HHYG-10050L x1
	Manual Instruction x1
	Quality Certificate x1
Unit Weight	17 kg
Packing Weight	19 kg
Packing Dimension	250x250x280 mm
