Single Acting Hollow Plunger Hydraulic Cylinders

Hydraulic Cylinders /

Single Acting Hollow Plunger Hydraulic Cylinders

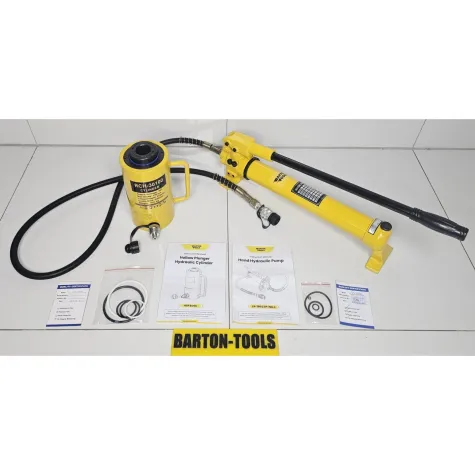

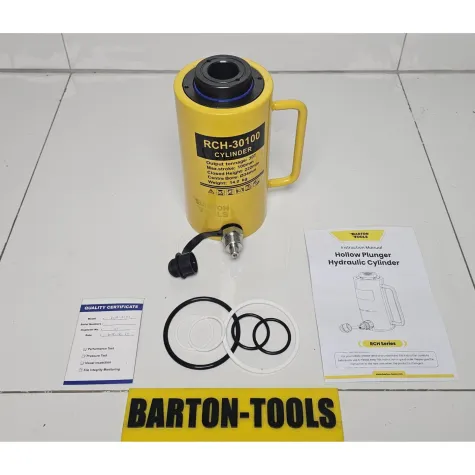

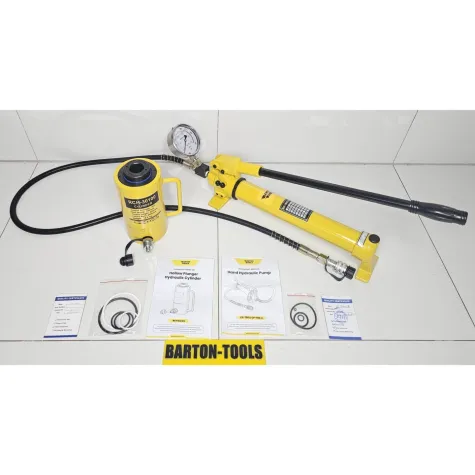

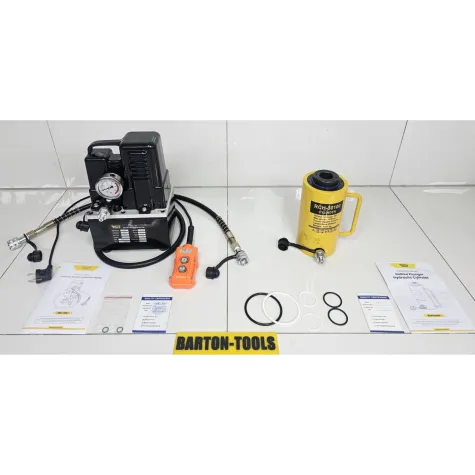

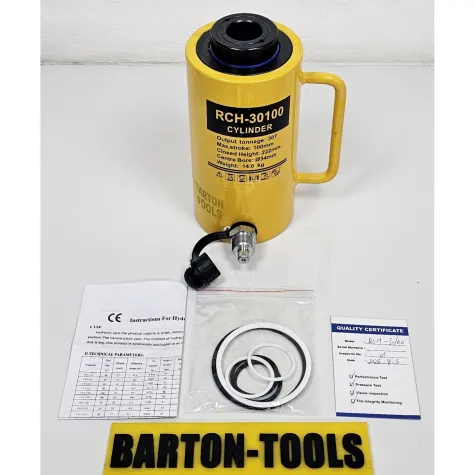

Single Acting Hollow Plunger Hydraulic Cylinders Single Acting Hollow Plunger Hydraulic Cylinder 30 Ton 100mm Stroke RCH-30100 BARTON 1 rch_30100_pic_1

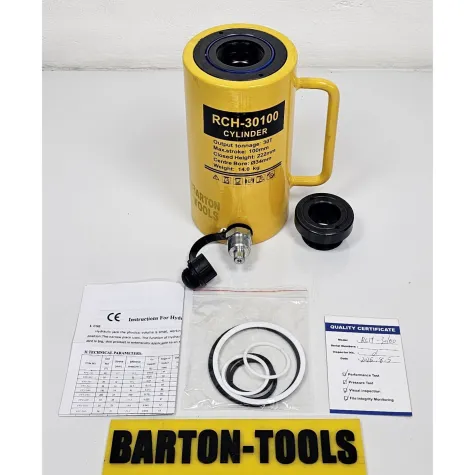

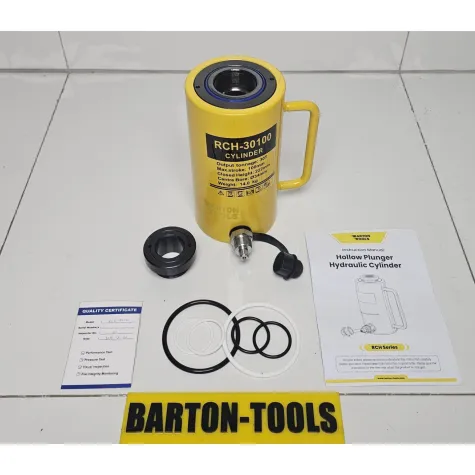

Single Acting Hollow Plunger Hydraulic Cylinders Single Acting Hollow Plunger Hydraulic Cylinder 30 Ton 100mm Stroke RCH-30100 BARTON 2 rch_30100_pic_2

Single Acting Hollow Plunger Hydraulic Cylinder 30 Ton 100mm Stroke RCH-30100 BARTON

Description

Catalog Manual Video

Single Acting Hollow Plunger Hydraulic Cylinders Single Acting Hollow Plunger Hydraulic Cylinder 30 Ton 100mm Stroke RCH-30100 BARTON

Specifications

With Saddle (Anti Slip) and Dust Seal (Increase Scratch Resistance)
Suitable for Vertical, Horizontal, Upside Down Positions

Model	RCH-30100
Pump System	Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar	30 Ton
Body Height	222 mm (No Saddle) / 239 mm (With Saddle)
Travel / Stroke	100 mm
Total Height	322 mm (No Saddle) / 339 mm (With Saddle)
Oil Capacity	477 ml
Piston Diameter	65 mm
Hole Diameter	34 mm
Outside Diameter	115 mm
Effective Area	47.7 cm²
Saddle	Yes, Diameter 65 mm
Dust Seal	Yes
Handle	Yes
Connection	Male 3/8" NPT x Male Coupler ZG
Mounting	Base Mounting Hole
	Inner Piston Thread
Package Includes	Wooden Box x1
	Cylinder RCH-30100 x1
	Manual Instruction x1
	Quality Certificate x1

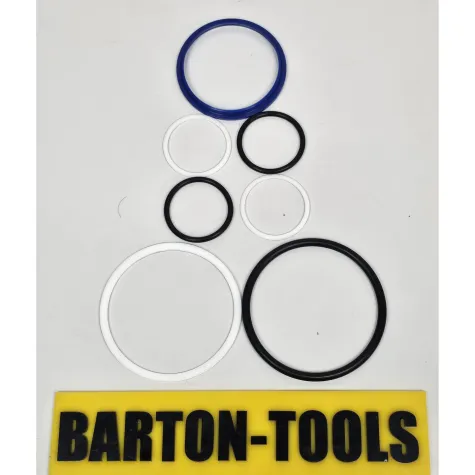

	Extra Seal Set x1
Unit Weight	14 kg
Packing Weight	16 kg
Packing Dimension	270x180x150 mm
