Single Acting Lock Nut Hydraulic Cylinder 100 Ton 100mm Stroke CLL-100100 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Tweet
Specifications
Suitable for Vertical use only.
Mechanical Lock for Extra Safety.
Model
CLL-100100
Pump System
Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar
100 Ton
Body Height
215 mm

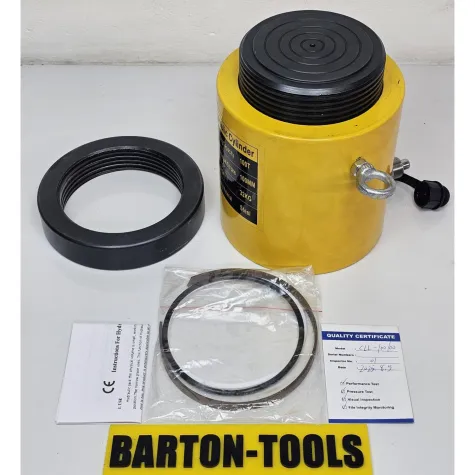

Locknut Height
35 mm
Travel / Stroke
100 mm
Total Height
315 mm
Oil Capacity
1430 ml
Piston Diameter
135 mm
Outside Diameter
178 mm
Effective Area
143 cm²
Saddle
No
Dust Seal
No
Handle
No
Connection
Male 3/8" NPT x Male Coupler ZG
Mounting
No

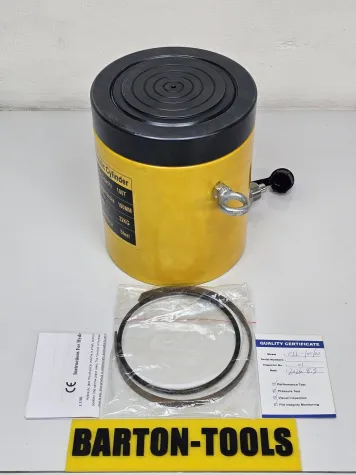

Package Includes
Wooden Box x1
Cylinder CLL-100100 x1
Manual Instruction x1
Quality Certificate x1

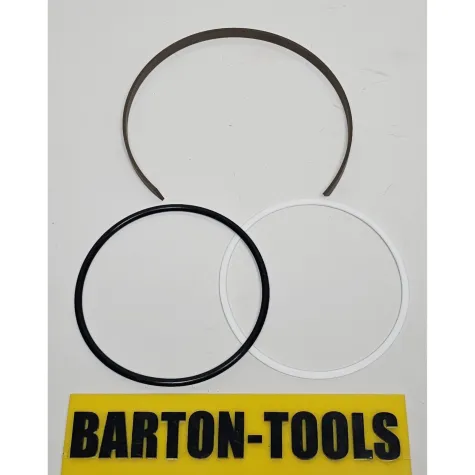

Extra Seal Set x1
Unit Weight
32 kg
Packing Weight
44 kg
Packing Dimension
230x230x250 mm
