Single Acting Lock Nut Hydraulic Cylinder 50 Ton 50mm Stroke CLL-5050 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Tweet
Specifications
Suitable for Vertical use only.
Mechanical Lock for Extra Safety.
Model
CLL-5050
Pump System
Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar
50 Ton
Body Height
147 mm
Locknut Height
34 mm
Travel / Stroke
50 mm
Total Height
197 mm
Oil Capacity
354 ml
Piston Diameter
95 mm
Outside Diameter
125 mm
Effective Area
70.8 cm²
Saddle
No
Dust Seal
No
Handle
No
Connection
Male 3/8" NPT x Male Coupler ZG
Mounting
No

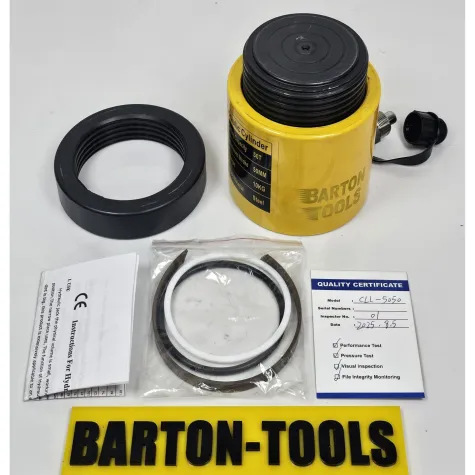

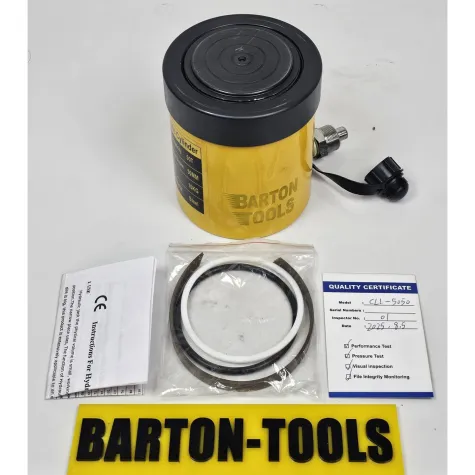

Package Includes
Wooden Box x1
Cylinder CLL-5050 x1
Manual Instruction x1
Quality Certificate x1

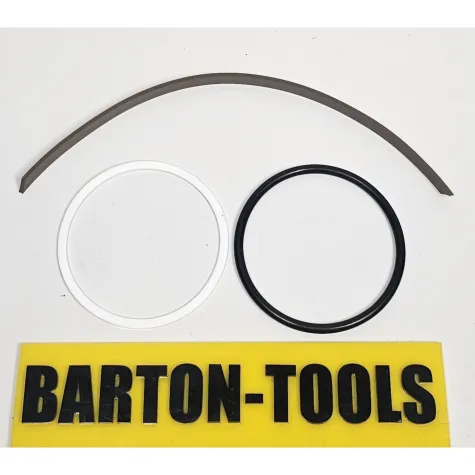

Extra Seal Set x1
Unit Weight
10 kg
Packing Weight
14 kg
Packing Dimension
210x140x180 mm
