Single Acting Multi Stage Telescopic Low-Height Hydraulic Cylinder 30 Ton 56mm Stroke FPY-30D BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Catalog
Manual
Video
Tweet
Specifications
Suitable for Vertical, Horizontal, Upside Down Positions
Model
FPY-30D
Pump System
Single Acting 700 Bar / 10000 psi
Cylinder Capacity @700 Bar
30 Ton
Body Height
61 mm
Travel / Stroke
Stage 1: 14 mm
Stage 2: 22 mm
Stage 3: 20 mm
Total Stroke: 56 mm
Total Height
117 mm
Oil Capacity
123 ml
Piston Diameter
Stage 1: 64 mm
Stage 2: 47 mm
Stage 3: 27 mm
Outside Diameter
123x100 mm
Effective Area
Stage 1: 70.9 cm²
Saddle
No
Dust Seal
No
Handle
No
Connection
Male 3/8" NPT x Male Coupler ZG
Mounting
Side Mounting Hole x2

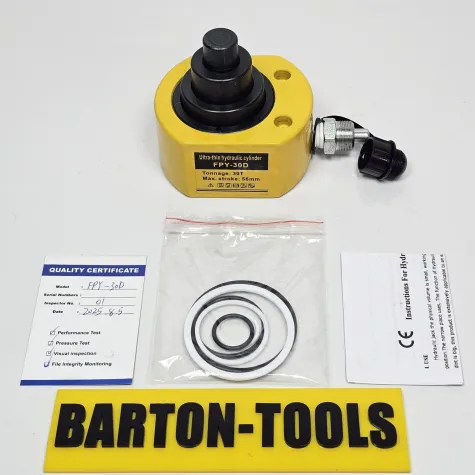

Package Includes
Wooden Box x1
Cylinder FPY-30D x1
Manual Instruction x1
Quality Certificate x1

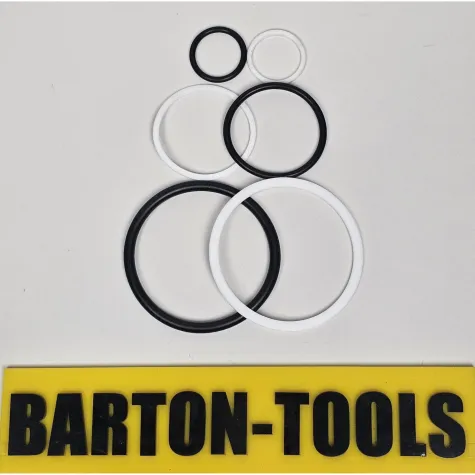

Extra Seal Set x1
Unit Weight
4.8 kg
Packing Weight
6 kg
Packing Dimension
210x130x100 mm
