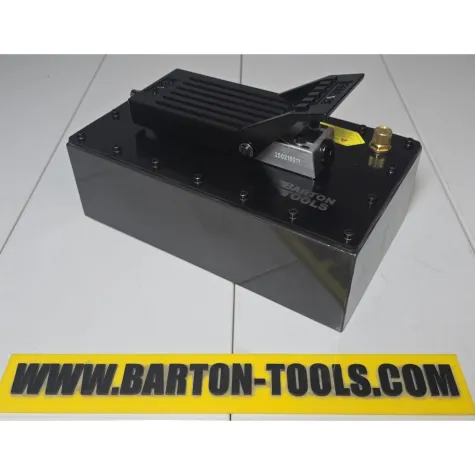

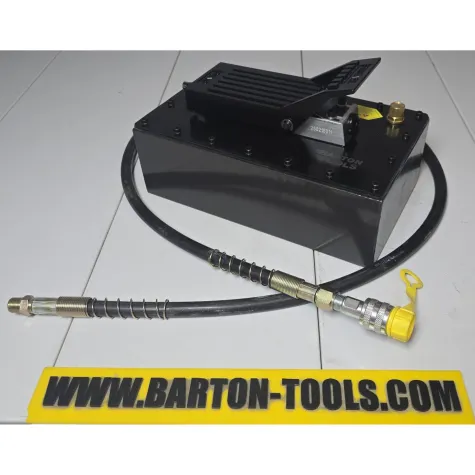

Air Pressure / Angin Compressor / Pneumatic Hydraulic Pump 3.8L Steel Body BQ-DA6 BARTON
Description
Request
Informasi Pemesanan
Untuk order ini silahkan isi form dibawah ini
Team marketing kami akan segera menghubungi anda dan memberikan anda solusi dan harga terbaik untuk keperluan anda.
Name
Email
Telephone
Message
Keluar
Download Catalogue
Tweet
Specifications
Model
BQ-DA6
Pump System
Single Acting (One Way)
Working Pressure
700Bar 70MPa 10000psi
Air Supply Require
1.7-8.6 bar
Oil Capacity
3.8 L (Oil Included)
Air Consumption
255L/min
No-Load Output Flow
1.16L/min
Load Output Flow
0.15L/min
Air Intake Port
1/4"-18 NPTF
Oil Port
3/8"-18 NPTF
Recommended Oil Grade
Hydraulic Oil ISO VG 15-32 Antiwear
Unit Weight
8.8 kg
Packing Weight
12 kg
Packing Weight with Hose
13 kg
Packing Dimension
345x210x225 mm
