Heavy Duty Double Acting Hydraulic Punch for H-Beam 20mm Steel CH-100B BARTON

Description

Model	CH-100B
Pump System	Double Acting
Working Pressure	700 Bar / 10000 psi / 70 MPa
Output	100 Ton
Max. Thickness	20 mm (Mild Steel)
	24 mm (Copper/Aluminum Busbar)
Material Application	Steel Plate, Angle Steel, C-Channel, U-Channel, H-Beam
Punch Dies	22, 25, 28, 32 mm
Throat Depth	135 mm
Connection	Male 3/8" NPT x Male Coupler ZG x2

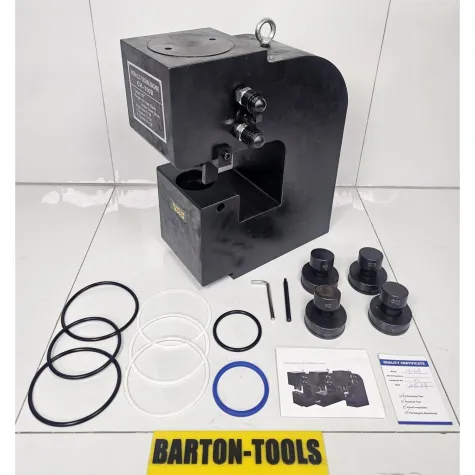

Package Includes	Wooden Box x1
	CH-100B x1
	Punch Dies x4
	Lock Nut Handle x1
	Hex Key x1
	Manual Instruction x1
	Quality Certificate x1

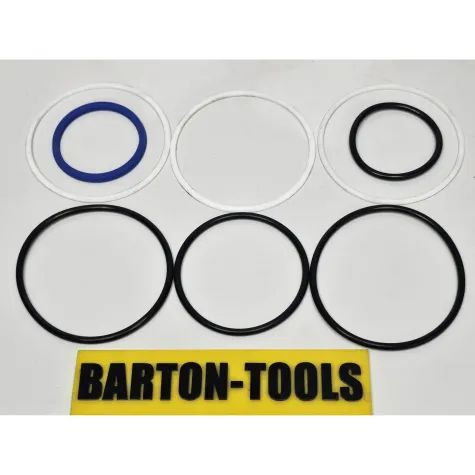

	Extra Seal Set x1
Packing Weight	152 kg
Packing Dimension	420x270x520 mm
