Hydraulic Pipe Benders Split Type

Hydraulic Pipe Bender 1/2"-2" (Ø22-60 mm) Split Type with Wheels and Overload Protection DWG-2 BARTON

Description

For Reference only, cannot be used for Stainless Steel Pipes

Model	DWG-2
Description	Split Type Model with Wheels and Overload Protection
Pump System	Single Acting 700 Bar / 10000 psi
Output	16 Ton
Stroke	250 mm
Bending Range	1/2"-2" (Ø22-60 mm)
Wall Thickness of Pipe	2.75-4.5 mm
Application Materials	Various Steel Pipes, Galvanized Pipes
Bending Angle	0° to 90°
Bending Mould (Inch & OD)	1/2" (22mm), 3/4" (28mm), 1" (34mm), 1-1/4" (42mm), 1-1/2" (48mm), 2" (60mm)
Bending Mould Material	Iron Cast
Connection	Male 3/8" NPT x Male Coupler ZG

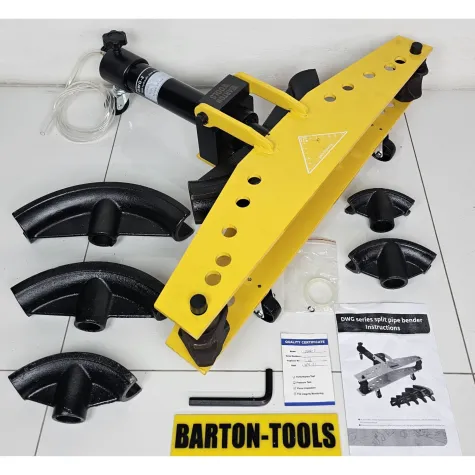

Package Includes	Wooden Box x1
	DWG-2 Unit x1
	Bending Mould x6 pcs
	Hex Key x1
	Castor Wheel x3
	Overload Hose x1
	Safety Gloves x1
	Manual Instruction x1
	Quality Certificate x1

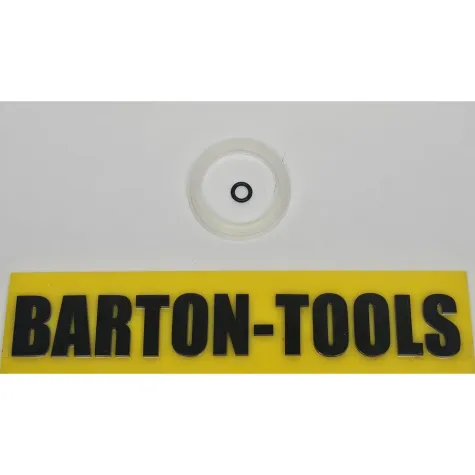

	Seal Set x1
Packing Weight	41 kg
Packing Dimension	720x320x170 mm
